1/3/22 Rough Dimension Generation for Boom arm

Written By Team Inspiration

 Colin Szeto

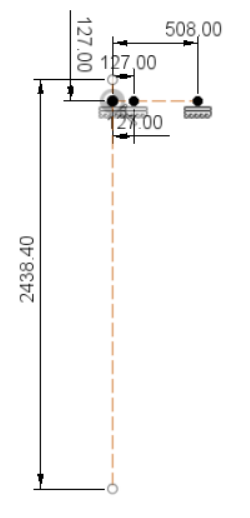

Boom arm horizontal - the extended length of the linear actuator is 523.634 mm (20.61551181 in)


381.00 mm (15 in )is the length of the actuator when the boom arm is deployed

https://transmotec.com/product/DLA-12-10-A-150-HS2-IP65/


Possible linear actuator
